Flowmeters LOGYKA L filling machines

LOGYKA series filling machines are equipped with magnetic or mass flowmeters technology. Logyka machines are suitable for dosing any product, ensuring a filling range from 20 ml up to 30 lt and a high filling accuracy ± 0,2%.

Available in the following configurations:

  • Linear or rotary, according to different production requirements
  • Automatic or semi-automatic for filling drums, tanks and kegs
  • Made of stainless steel or plastic material
  • ATEX version
  • GMP version

Why LOGYKA?

TECHNOLOGY & ACCURACY

Magnetic or mass flowmeters dosing system, ensuring high filling accuracy ± 0.2%

FLEXIBILITY & VERSATILITY

Suitable for dosing any type of edible product, even foamy and high-viscous

SIMPLICITY & EASE

Quick and easy size changeover: switch from a size to another in few steps

Types of Machines

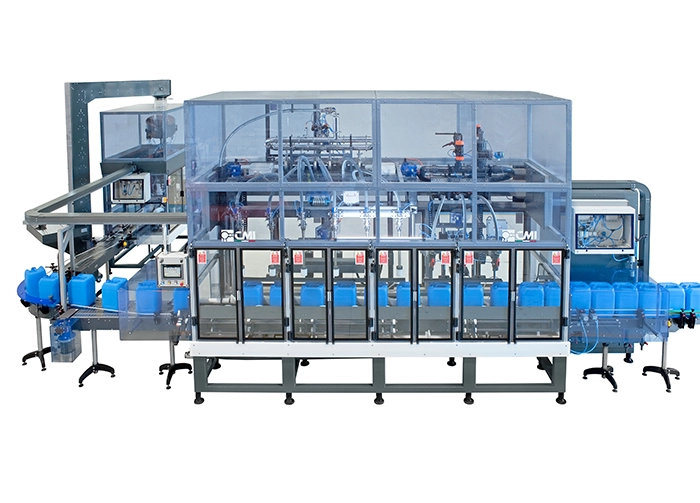

LOGYKA L automatic linear filling machine with magnetic or mass flowmeters dosing technology



  • Liquid delivery valves made of stainless steel, titanium, plastic material;  gaskets depending on the product treated
  • Electrical height adjustment of liquid delivery valves support
  • Sensors and control device to monitor the entire process
  • ULTRA CLEANING ELECTRONIC SYSTEM patented washing system (optional)
  • Machine coverage by HEPA filters (optional)

The machine can be supplied in food grade, ATEX and Anti Acid Versions.

Sectors:

Acid & corrosive /Industrial & Chemical / Home & Personal Care / Food & Beverage / Parapharma & Cosmetics

LOGYKA semi-automatic trailer-mounted filling machine equipped with mass or magnetic flowmeters

  • Suitable for dosing different products and filling different shapes drums: perfect for viscous, abrasive and foamy products in food, chemical and corrosive industries
  • User friendly and time saver
  • Dosing unit for filling drums from 10l up to 1000 l
  • Liquid feeding pump (optional)
  • Dosing unit for filling bottles from 500ml up to 5000 ml, fixed position (optional)

The machine can be supplied in food grade, ATEX and Anti Acid Versions

Sectors:

Acid & corrosive / Industrial & Chemical / Home & Personal Care / Food & Beverage

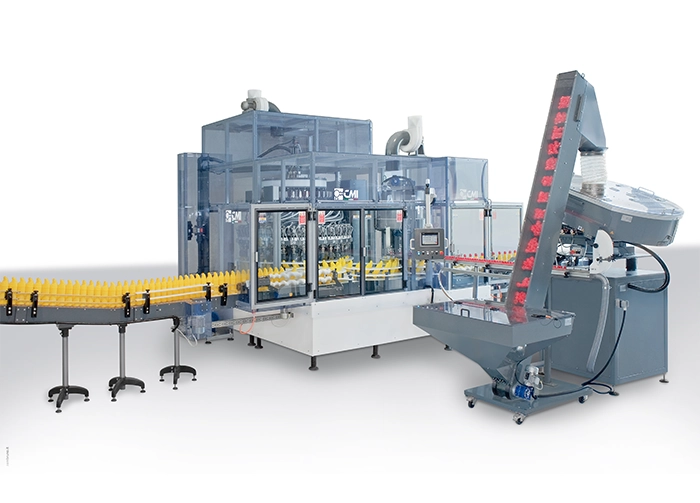

Automatic rotary monoblock machine combining both LOGYKA R filling and capping in one basement

  • Liquid delivery valves made of stainless steel with Teflon seals
  • Sensors and control device to monitor the entire process
  • Capping system by screwing heads, or pressing heads
  • Electrical height adjustment of liquid delivery valves support
  • Automatic height adjustment of filling and capping machine by control panel
  • Bottle and cap size changeover (optional)
  • Screwing heads controlled by brushless motors (optional)
  • ULTRA CLEANING ELECTRONIC SYSTEM patented washing system (optional)
  • Machine coverage by HEPA filters (optional)

The machine can be supplied in food grade, ATEX and Anti Acid Versions.

Sectors:

Acid & corrosive / Industrial & Chemical / Home & Personal Care / Food & Beverage / Parapharma & Cosmetics

Automatic rotary monoblock machine combining both LOGYKA TA 1PP filling and capping in one basement

  • Sensors and control device to monitor the entire process
  • Liquid delivery valves made of stainless steel with Teflon seals
  • Capping system by screwing head, or pressing head
  • Automatic height adjustment of filling and capping machine by control panel ( optional)
  • Bottle and cap size changeover (optional)
  • Screwing heads controlled by brushless motor (optional)
  • ULTRA CLEANING ELECTRONIC SYSTEM patented washing system (optional)
  • Machine coverage by HEPA filters (optional)

The machine can be supplied in food grade, ATEX and Anti Acid Versions.

Sectors:

Acid & corrosive / Industrial & Chemical / Home & Personal Care / Food & Beverage / Parapharma & Cosmetics

COSMOLINE Automatic rotary monoblock machine consisting of flowmeters filler and capper or volumetric pressure filler and capper

Dosing technology with mass and magnetic flowmeters, or volumetric pressure filling system, through pneumatic cylinders with quick adjustment of liquid discharge valves suitable for filling any type of liquid, even foamy and very dense.

  • Liquid valves made of stainless steel with Teflon seals
  • Quick adjustment of the filling and capping phases
  • Security device stopping the machine in case of no bottle detected
  • All valves and dispenser are easy to disassemble thanks to clamp connectors
  • Suitable for filling bottles from 20ml up to 1000ml
  • Bottom-up filling nozzles with adjustable raising-descent speed and adjustable positioning (optional)

Sectors:
Home & Personal Care / Parapharma & Cosmetics

Do you want to access our catalogues?

Media

Request more information
to our consultants

ULTRA CLEANING ELECTRONIC SYSTEM ® (patented system)

LOGYKA machines are equipped with the most efficient washing and sanitizing system, patented by CMI.

By means of electronic management, cleaning the hydraulic circuit becomes easier. The process is fully automated and programmable from the control panel. Each washing cycle can be set according to the washing liquid.
Our innovative solution ensures:

  • 85% reduction of washing time
  • 75% reduction of washing liquid consumption
  • Significant reduction of handling costs thanks to electronic programming which allows to select different settings according to the washing liquid

Ultra Cleaning Electronic System is supplied together with a software for managing different cleaning recipes according to different washing liquids.
